What are the grounding requirements for a liquid storage tank?
As a reputable liquid storage tank supplier, I understand the critical importance of proper grounding for liquid storage tanks. Grounding is not just an optional safety measure; it is a fundamental requirement that ensures the safe operation of these tanks. In this blog post, I will delve into the grounding requirements for liquid storage tanks, explaining why grounding is necessary, the key components of a proper grounding system, and how to ensure compliance with relevant standards.
Why is grounding necessary for liquid storage tanks?
The primary reason for grounding a liquid storage tank is to prevent the buildup of static electricity. When liquids are transferred into or out of a storage tank, friction between the liquid and the tank walls or piping can generate static electricity. If this static electricity is not properly dissipated, it can accumulate to a level where it can cause a spark. In the presence of flammable or combustible liquids, such a spark can ignite the vapors, leading to a fire or explosion.
Grounding provides a path of least resistance for the static electricity to flow safely into the earth. By connecting the tank to the ground, any static charge that builds up on the tank is quickly dissipated, reducing the risk of a static discharge. Additionally, grounding helps to protect against electrical surges caused by lightning strikes, which can also pose a significant threat to liquid storage tanks.
Key components of a proper grounding system
A proper grounding system for a liquid storage tank typically consists of several key components:
- Grounding electrode: This is the part of the grounding system that is in direct contact with the earth. Common types of grounding electrodes include ground rods, ground plates, and concrete-encased electrodes. The grounding electrode should be installed in accordance with local electrical codes and standards to ensure effective grounding.
- Grounding conductor: The grounding conductor is the wire or cable that connects the tank to the grounding electrode. It should be made of a material with low resistivity, such as copper or aluminum, and have a sufficient cross-sectional area to carry the electrical current safely. The grounding conductor should be securely connected to both the tank and the grounding electrode to ensure a good electrical connection.
- Bonding: Bonding is the process of connecting all metallic parts of the tank and associated equipment, such as piping, valves, and pumps, together to ensure electrical continuity. This helps to prevent the buildup of potential differences between different parts of the system, which can lead to static discharges. Bonding conductors should be used to connect all metallic components, and the connections should be tight and corrosion-resistant.
- Monitoring and testing: Regular monitoring and testing of the grounding system are essential to ensure its effectiveness. This can include measuring the ground resistance, checking the integrity of the grounding conductors and bonds, and inspecting the grounding electrode for signs of corrosion or damage. Any issues identified during testing should be promptly addressed to maintain the safety of the grounding system.
Compliance with relevant standards
There are several national and international standards that govern the grounding requirements for liquid storage tanks. In the United States, the National Fire Protection Association (NFPA) publishes NFPA 77, which provides guidelines for the control of static electricity. NFPA 30, the Flammable and Combustible Liquids Code, also includes requirements for grounding and bonding of liquid storage tanks.
In addition to NFPA standards, other organizations, such as the American Petroleum Institute (API) and the International Electrotechnical Commission (IEC), have developed standards and recommendations for grounding and bonding of storage tanks. It is important for liquid storage tank suppliers and operators to be familiar with these standards and ensure that their grounding systems comply with the applicable requirements.
Our products and grounding considerations

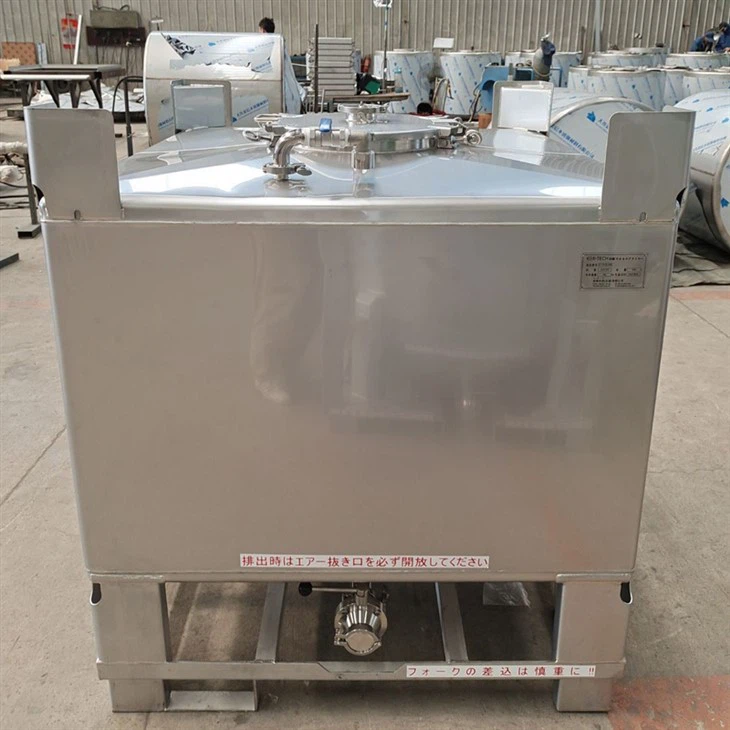

As a liquid storage tank supplier, we offer a wide range of products, including Steel Totes, 190L SS Tote Powder Tank, and Stainless Steel Olive Oil Storage Tanks. When designing and manufacturing these tanks, we take into account the grounding requirements to ensure the safety of our customers.
All our tanks are designed to be easily grounded, with provisions for connecting grounding conductors and bonding all metallic components. We also provide detailed installation instructions that include guidelines for proper grounding and bonding. In addition, we can offer technical support to our customers to help them ensure that their grounding systems are installed and maintained correctly.
Conclusion
Proper grounding is essential for the safe operation of liquid storage tanks. By preventing the buildup of static electricity and protecting against electrical surges, grounding helps to reduce the risk of fires and explosions. A proper grounding system consists of a grounding electrode, grounding conductor, bonding, and regular monitoring and testing. Compliance with relevant standards is crucial to ensure the effectiveness of the grounding system.
As a liquid storage tank supplier, we are committed to providing our customers with high-quality tanks that meet the highest safety standards. We understand the importance of proper grounding and can help our customers design and implement effective grounding systems for their tanks. If you are in the market for a liquid storage tank, we encourage you to contact us to discuss your requirements and learn more about how our products can meet your needs. Let's work together to ensure the safe and efficient storage of your liquids.
References
- National Fire Protection Association. NFPA 77: Recommended Practice on Static Electricity.
- National Fire Protection Association. NFPA 30: Flammable and Combustible Liquids Code.
- American Petroleum Institute. API Standards related to storage tank safety.
- International Electrotechnical Commission. IEC standards on electrical safety and grounding.
